Modal Class

Here we will learn about modal class, including what it is and how to find the modal class from a grouped frequency table.

There are also modal class worksheets based on Edexcel, AQA and OCR exam questions, along with further guidance on where to go next if you’re still stuck.

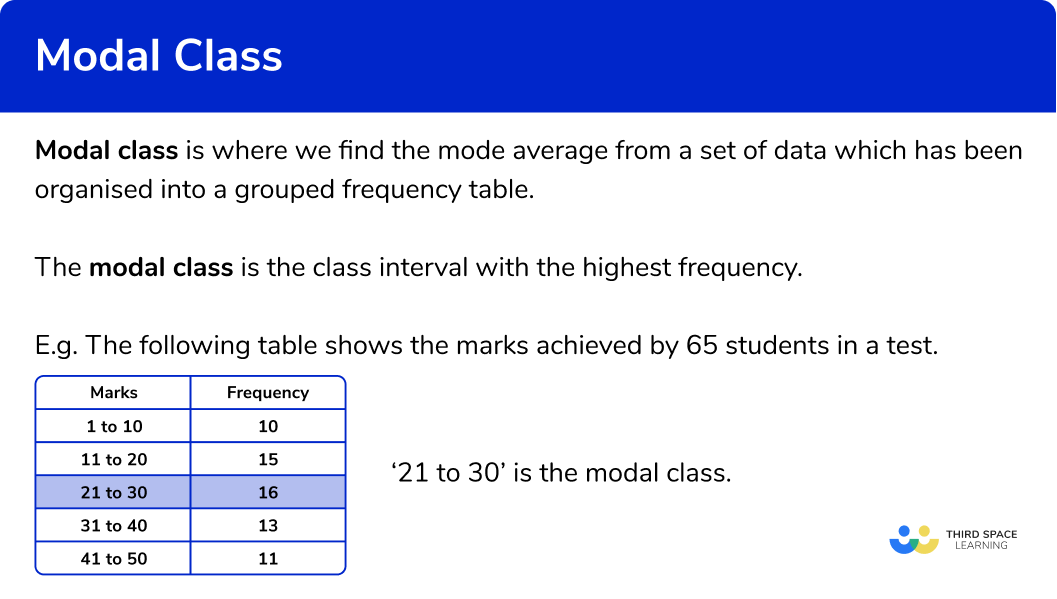

The modal class is the class interval within a set of data that contains the most number of data points, which we can view as the highest frequency.

For example,
Below we have a set of data showing the marks achieved by $65$ students in a test. The class interval with the most number of data points is $‘21$ to $30’$ as this class interval has the highest frequency of $16$ (the class interval contains $16$ items of data). We would therefore state,

The modal class is $21$ to $30$ .

What is modal class?

Sometimes you may be given a bar chart, a pie chart, a frequency polygon, a cumulative frequency curve, or even a histogram, and be asked to state the modal class from this graph. You, therefore, need to be able to interpret the data from each graph.

Below is a table summarising how to state the modal class from common types of graph/chart.

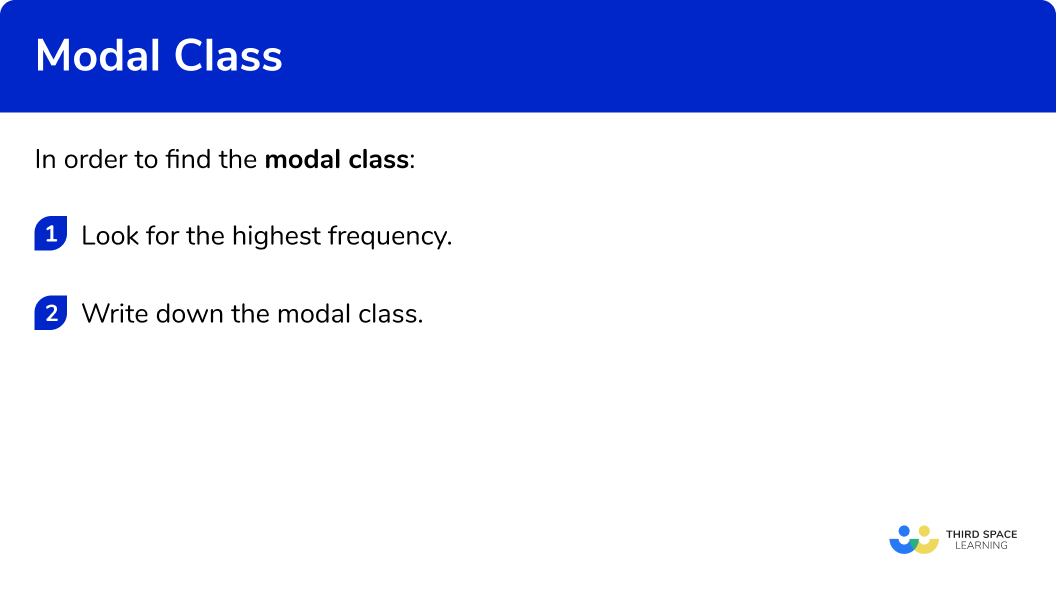

In order to find the modal class:

Look for the class interval with the highest frequency.
Write down the modal class.

How to find the modal class

Averages from frequency table worksheet (includes modal class)

Get your free modal class worksheet of 20+ averages from frequency table questions and answers. Includes reasoning and applied questions.

DOWNLOAD FREE

Averages from frequency table worksheet (includes modal class)

Get your free modal class worksheet of 20+ averages from frequency table questions and answers. Includes reasoning and applied questions.

DOWNLOAD FREE

Related lessons on frequency tables

Modal class is part of our series of lessons to support revision on frequency tables. You may find it helpful to start with the main frequency table lesson for a summary of what to expect, or use the step by step guides below for further detail on individual topics. Other lessons in this series include:

The grouped frequency table shows the number of people in $80$ shops in a town. State the modal class from the following table.

Look for the class interval with the highest frequency.

The highest frequency is $26$

2Write down the modal class.

The class with the highest frequency is $‘18$ to $21’$ .

The modal class is $‘18$ to $21’$ .

The grouped frequency table shows the number of pupils in $90$ primary schools in an area. State the modal class from the following set of data.

Look for the class interval with the highest frequency.

Show step

The highest frequency is $23$ .

Write down the modal class.

Show step

The associated class with the highest frequency is $‘100 - 149’$ .

The modal class is $‘100 - 149’$ .

The grouped frequency table shows the number of marks achieved by $100$ students in their science test. State the modal class from the results table below.

Look for the class interval with the highest frequency.

Show step

The highest frequency is $37$ .

Write down the modal class.

Show step

The associated class with the highest frequency is $'40\le x<60'$ .

The modal class is $'40\le x<60'$ .

In order to find the modal class from a graph / chart:

Look for the specific feature for the mode on the graph/chart.
Write down the modal class.

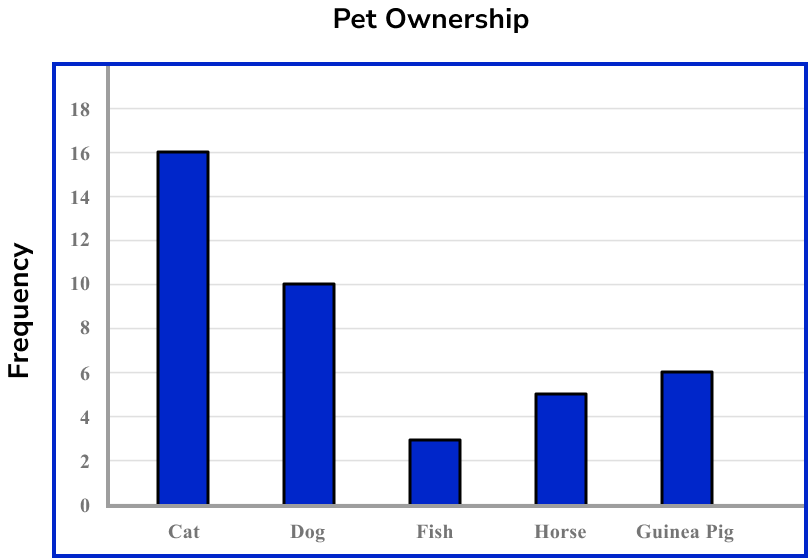

The bar chart below shows the frequencies of pet ownership from a group of people. Each person owns one pet. State the modal class from the bar chart below.

Look for the specific feature for the mode on the graph/chart.

Show step

The category with the highest frequency is ‘Cat’.

Write down the modal class.

Show step

The modal class is Cat.

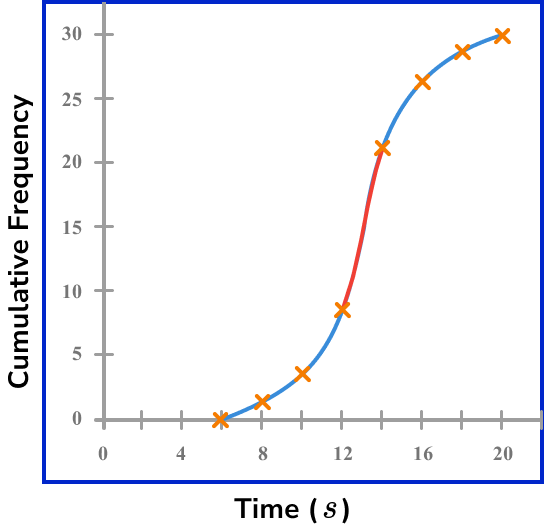

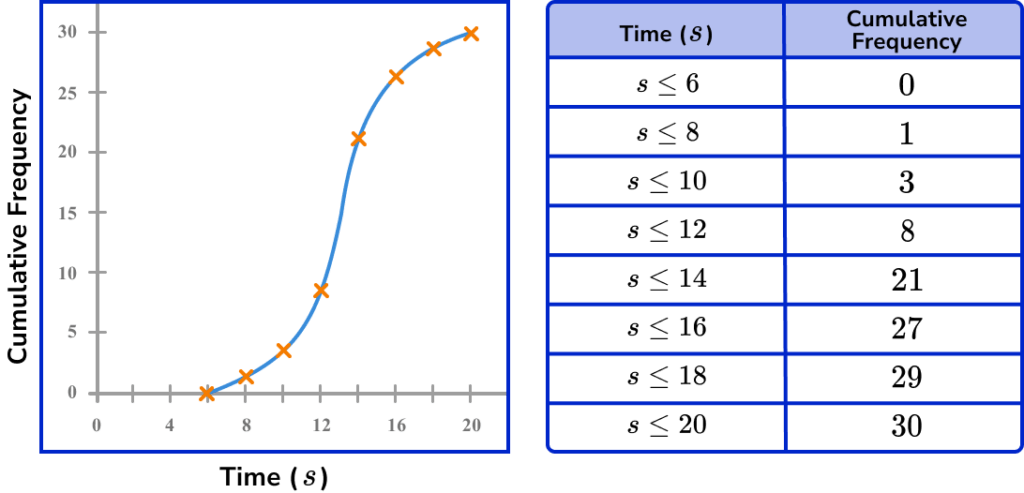

$30$ students ran $75m$ . Their time was recorded in a cumulative frequency diagram. Using the information below, determine the modal class for the set of data.

Look for the class interval with the highest frequency.

Show step

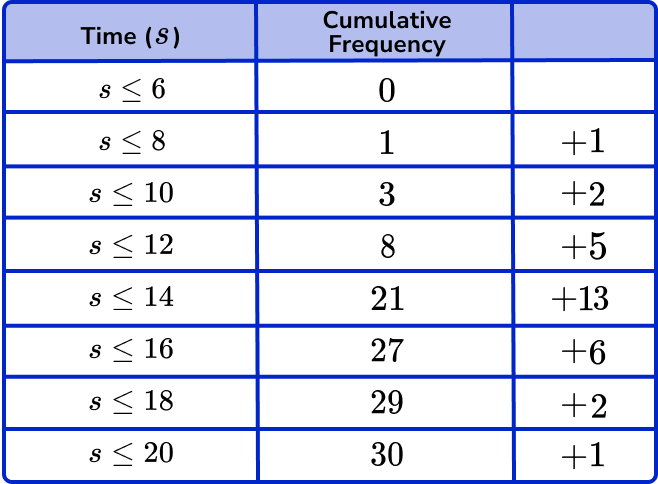

As we have a cumulative frequency table, the class with the highest frequency will have the largest increase from one time to the next.

Using the table, we have the largest increase between $12$ and $14$ seconds.

Also, on the cumulative frequency diagram, this class interval has the steepest gradient:

Write down the modal class.

Show step

As this group represents the time above $12$ seconds and up to $14$ seconds we have the modal class interval to be $12 < s \le 14$ .

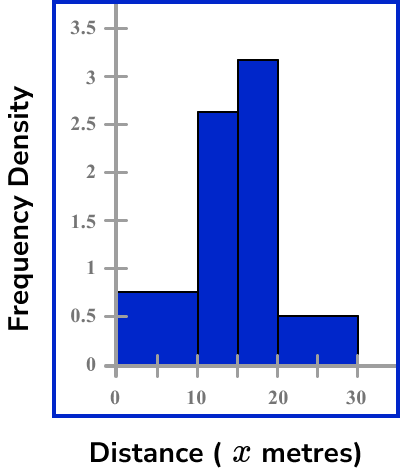

The histogram below represents the distance a ball was thrown by $40$ people. State the frequency of the modal class.

Look for the class interval with the highest frequency.

Show step

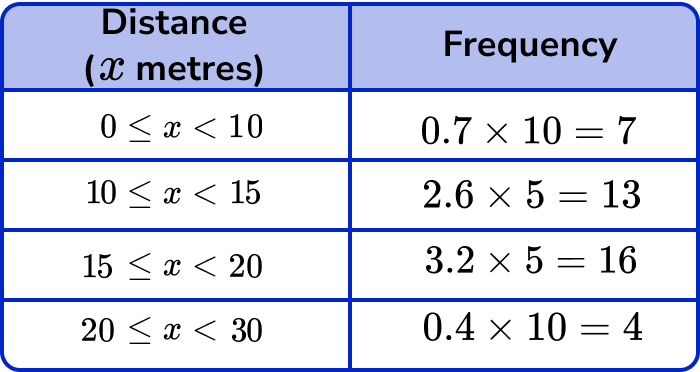

The class interval for a histogram with the highest frequency has the largest area (as the area of each bar is the frequency of the class).

Write down the modal class.

Show step

The modal class is $15 \le x < 20$ .

Common misconceptions

Check which average you are being asked for

Check if you have been asked for the median, mode (modal class) or mean average.

Multiple modes

A data set can have $1$ mode or $2$ modes (bimodal). It is possible that a data set has no modal group at all.

Item from the data set

The mode will be the item – NOT the frequency.

Class intervals notation

The class intervals used in grouped frequency tables can be written in different ways. Take care when writing them, or finding the midpoints.

For example,

$0$ to $5$

0-5

0\le x <5

Highest frequency

A number may appear more than once in a frequency column. This does NOT affect the modal class. The modal class is always indicated by the largest frequency, not the frequency that occurs the most often.

For example,

The modal class is $‘20$ to $29’$ as this interval has the highest frequency. (We do not need to consider the fact that the frequency $‘5’$ appears twice in the frequency column.)

13

12

$20$ to $29$

$10$ to $19$

The highest frequency is $13$ . The associated class is $‘10$ to $19’$ . So the modal class is $‘10$ to $19’$ .

18

12-14

6-8

9-11

The highest frequency is $18$ . The associated item is $‘6-8’$ . So the modal class is $‘6-8’$ .

15 < h \le20

31

20 < h \le25

24

The highest frequency is $31$ . The associated item is $‘15 < h \le20’$ . So the modal class is $‘15 < h \le20’$ .

Chocolate Discs

Fizzy Sours

Lollipops and Marshmallows

Lollipops

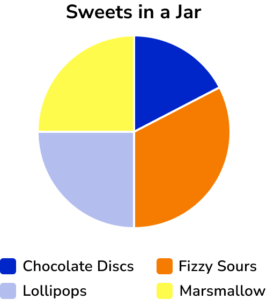

The largest segment of the circle is orange, which represents fizzy sours. (Angle $120^{\circ}$ ).

15\le x < 35

10\le x < 20

20\le x < 30

35\le x < 45

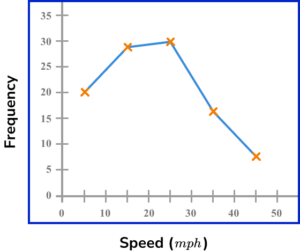

A frequency polygon plots the frequency of the group against the midpoint of the class interval.

As the class intervals are the same size, and the distance between each midpoint is $10mph$ , each class interval is $10mph$ . The upper bound for each class is $5mph$ above the midpoint, and the lower bound is $5mph$ lower than the midpoint.

The highest frequency is the mode and so the highest plotted value is at $(25,30)$ , so the modal class interval is $20\le x<30$ .

10\le x < 20

25\le x < 30

30\le x < 40

20\le x < 25

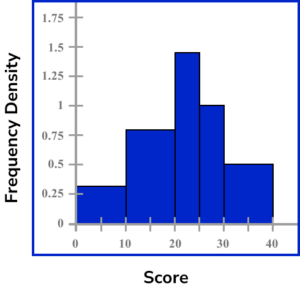

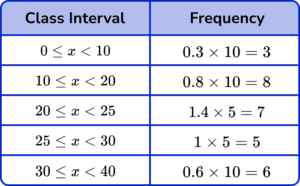

The modal class has the largest area. The area of each class is,

modal class practice question 6 explanation image 300x186

The class interval with the largest area / highest frequency is $10\le x < 20$ .

1. The table shows the speed, $x$ of $140$ vehicles on a motorway.

modal class gcse question 1

State the modal class interval.

(1 mark)

Show answer

65\le x<70

(1)

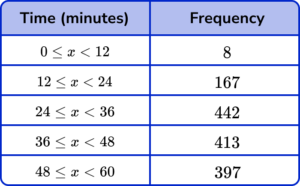

2. The table shows the time $1427$ people spend in a gym during one day.

modal class gcse question 2 300x186

State the modal class interval.

(1 mark)

Show answer

24\le x<36

(1)

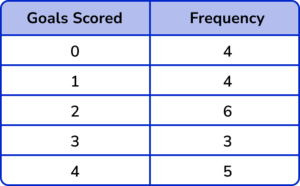

3. The table shows the number of goals scored in $22$ matches.

modal class gcse question 3 300x186

Justin says “the modal class is 4 because it occurs the most often”. Is Justin correct? Explain your answer.

(2 marks)

Show answer

(1)

The modal class is 2 because it has the highest frequency.

(1)

Learning checklist

You have now learned how to:

Interpret data sets from univariate empirical distributions through appropriate measures of central tendency (including modal class)
